Buy Owon TI332, Handheld Thermal Imaging Camera

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Infrared thermal imaging 320*240 resolution
Three fusion modes of visible and infrared
Three image enhancement modes for different applications
Customized high and low temperature limit alarm
Computer analysis software meets more professional industry applications
Multiple measurement methods, let the temperature hide nowhere
5 color palettes (Black Hot, White Hot, Rainbow, Iron, Enhanced Iron)
Large internal memory can store up to 20,000 images
Temperature measurement range -20 °C to 450 °C
Emissivity adjustable (0.01-0.99), default 0.95
Image capture using three images storage for multi-view analysis + 3.5-inch TFT LCD

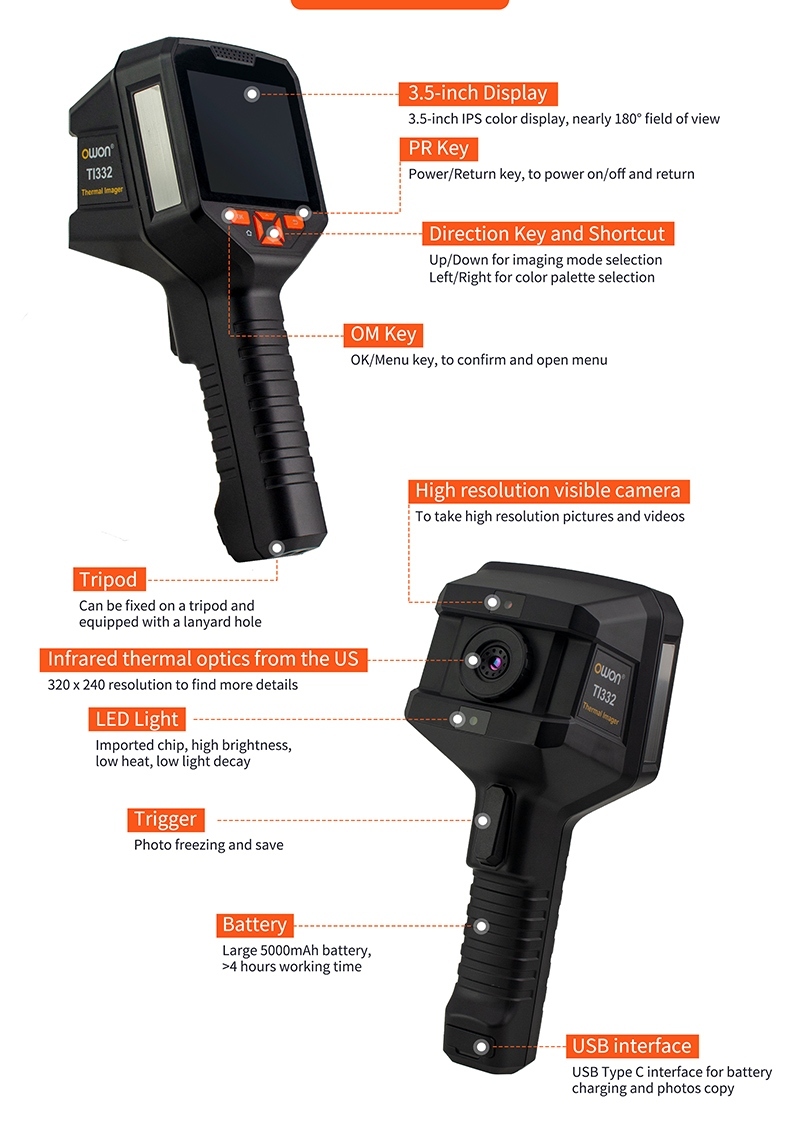

Features

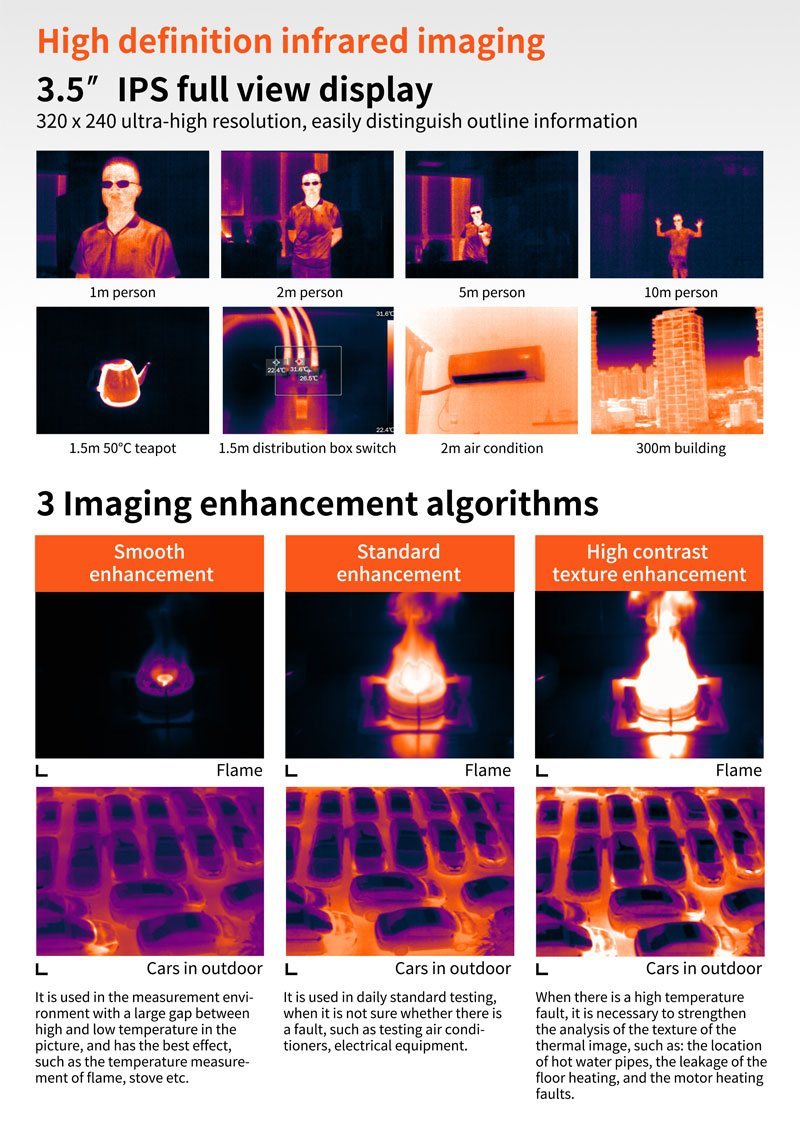

High Definition Infrated Imaging

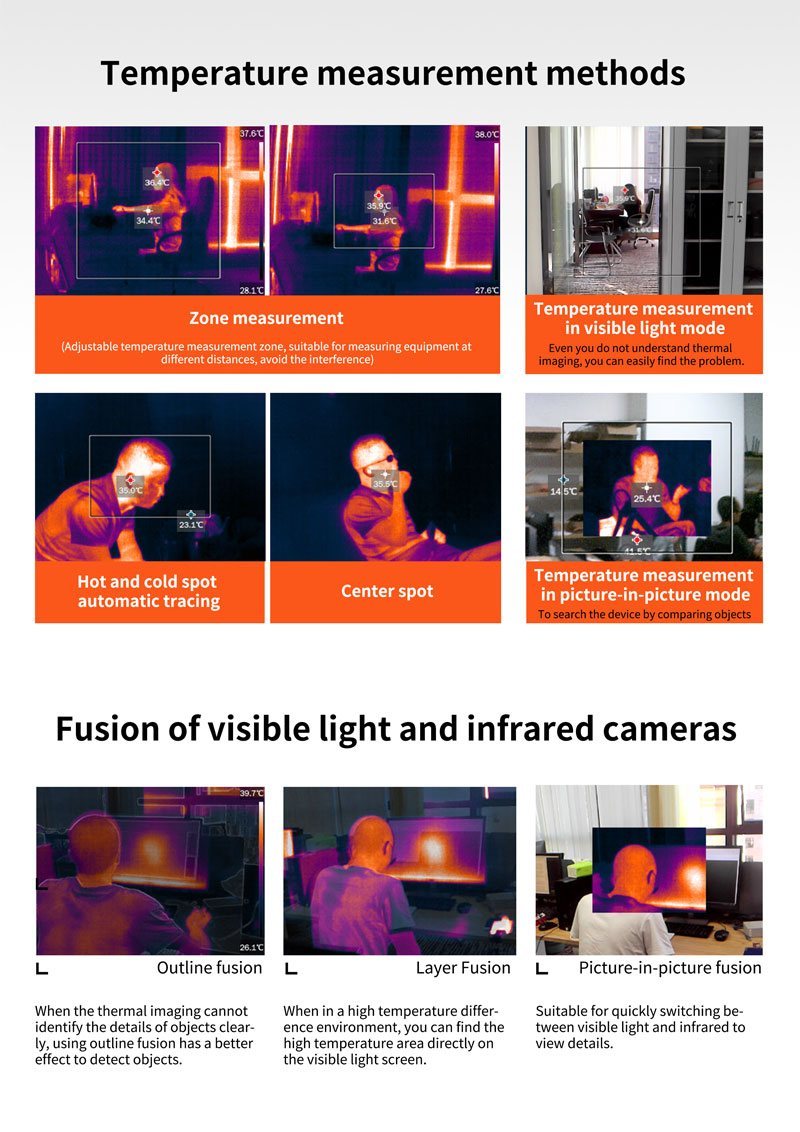

Temperature Measurement Methods

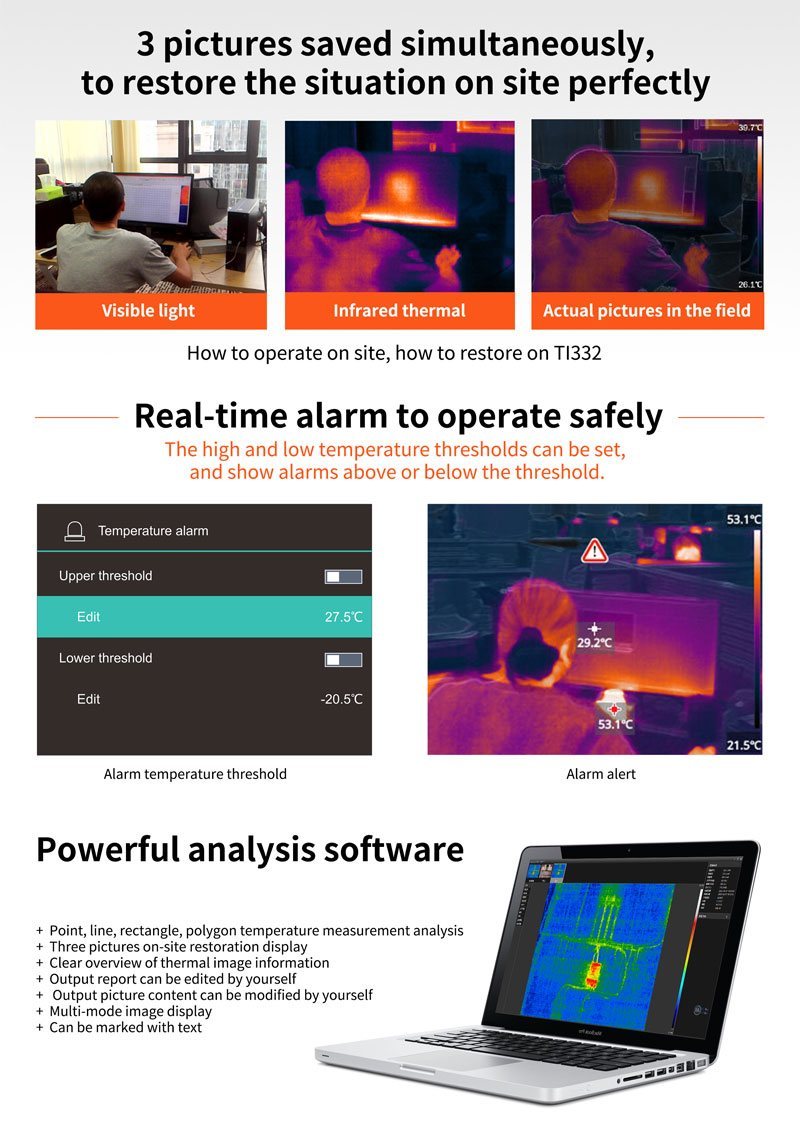

Real Time Alarm to Operate Safety

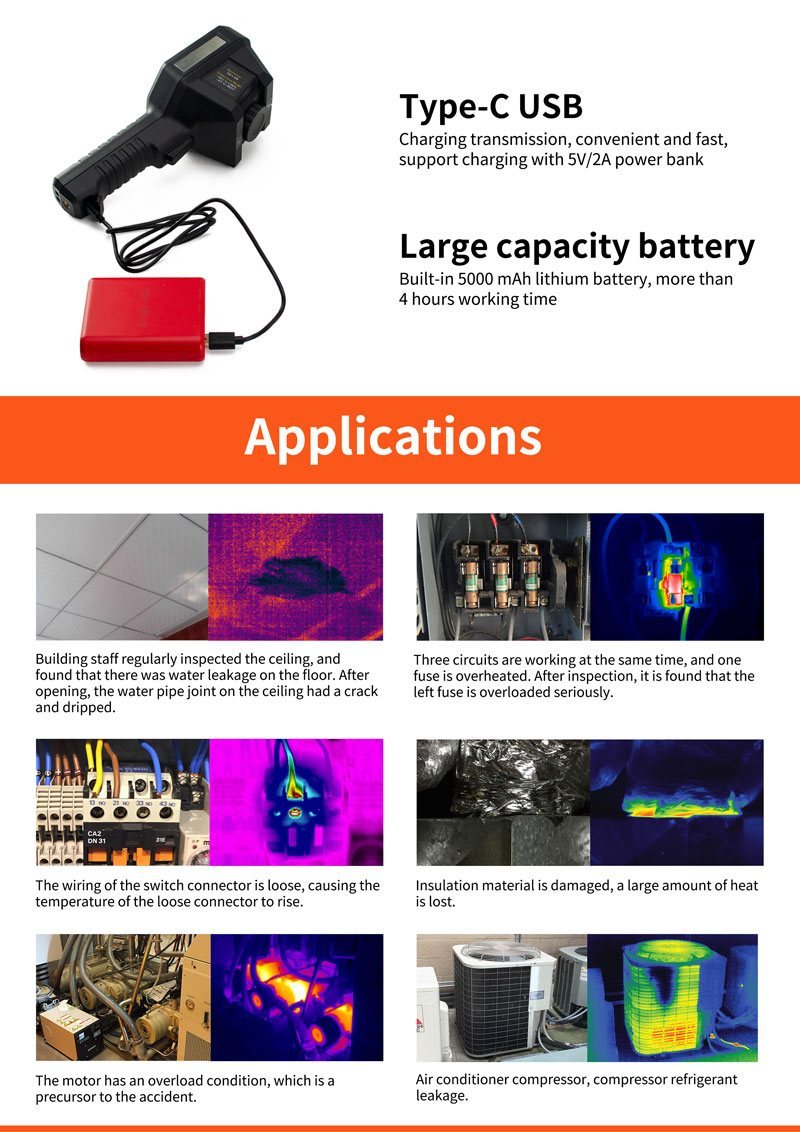

Applications

For more information, please see pdf file User Manual

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resolution	320*240
Frame rate	9Hz
Lens	6.5mm prime lens
Field of view	H:56 V:42
Lens	Horizontal field of view 66°
Light	LED light (torch)
Temperature measurement
Accuracy	±2 °C (for ambient temperature -20°C to +450°C)
Temperature measurement range	-20 °C to +350 °C
Device
Storage	8G EMMC internal flash memory
Communication and charging	USB Type-C
Battery	Built-in 5000mAh Li-ion battery(last about 4 hours after charge fully)
Handheld lanyard	Support
Display	3.5-inch IPS full-color display
Weight	Approx. 500g

Resolution	320*240
Frame rate	9Hz
Lens	6.5mm prime lens
Field of view	H:56 V:42
Lens	Horizontal field of view 66°
Light	LED light (torch)
Temperature measurement
Accuracy	±2 °C (for ambient temperature -20°C to +450°C)
Temperature measurement range	-20 °C to +350 °C
Device
Storage	8G EMMC internal flash memory
Communication and charging	USB Type-C
Battery	Built-in 5000mAh Li-ion battery(last about 4 hours after charge fully)
Handheld lanyard	Support
Display	3.5-inch IPS full-color display
Weight	Approx. 500g

Note: Please read description carefully. Do not base your order on the picture presented.
