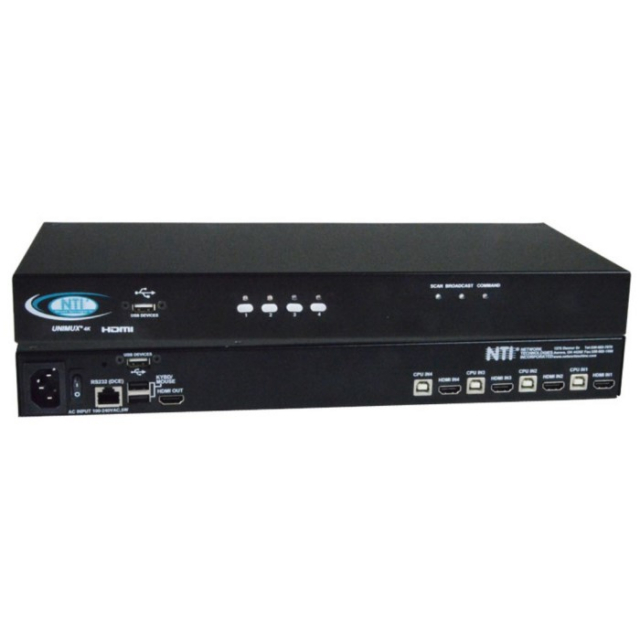

Buy NTI unimux-hd4k-4, 4K HDMI USB KVM Switch, 4-Port

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

unimux-hd4k-4 Includes Only:

Switch
Rackmount kit
Cable management tray

Features:

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and HDTV resolutions to 1080p (60Hz).
Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
Compatible with USB computers (PC, SUN and MAC) with HDMI outputs.
Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
High quality steel construction.

The UNIMUX™ HDMI USB KVM Switch allows a user to control up to 32 Ultra-HD 4Kx2K 30Hz USB computers with one USB keyboard, USB mouse and 4K HDMI monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Hosts

Female HDMI-A connectors.
Female USB Type B connectors.
Supports USB-enabled computers (PC, SUN, and MAC) with HDMI video.
Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Compliant with HDMI 1.4 and HDCP 1.4 standards.

Monitor

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and HDTV resolutions to 1080p (60Hz).
One female HDMI-A connector.
Compliant with HDMI 1.4 and HDCP 1.4 standards.

Devices

Two female USB 1.1 Type A connectors for keyboard and mouse.

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.

Dimensions

15.32x6.82x1.75 in (389x173x44 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

Product Details

Hosts

Female HDMI-A connectors.
Female USB Type B connectors.
Supports USB-enabled computers (PC, SUN, and MAC) with HDMI video.
Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Compliant with HDMI 1.4 and HDCP 1.4 standards.

Monitor

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and HDTV resolutions to 1080p (60Hz).
One female HDMI-A connector.
Compliant with HDMI 1.4 and HDCP 1.4 standards.

Devices

Two female USB 1.1 Type A connectors for keyboard and mouse.

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.

Dimensions

15.32x6.82x1.75 in (389x173x44 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
