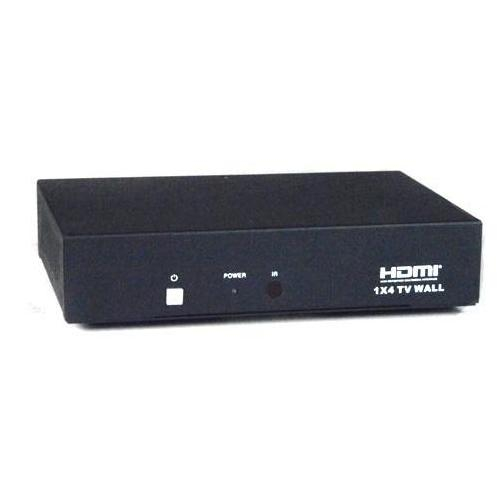

Network Technologies, splitmux-vwc-4hdlc, Multi-Format HD Video Wall Controller: 2x2

Features:

Supports video wall configurations with displays in landscape or portrait orientations.
- Landscape (horizontal) orientation: 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
- Portrait (vertical) orientation: 1x2, 1x3, 1x4
Cascade two processors to create video walls with up to 9 screens - 2x3, 3x2, 2x4, 4x2, and 3x3.
Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image.
Independent video in to video out resolution.
Supports HDTV resolutions to 1080p.
HDMI features supported:
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS.
- Bandwidth up to 225 MHz (6.75Gbps).
- Lip Sync
HDCP compatible.
Fluid, real-time video performance with 60 frames per second (fps).
Integrated USB media player - play content from a portable USB drive.
Control the video wall controller through Ethernet, RS232 serial port, or IR remote.
Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions	8.27 x 5.31 x 1.75 in
Operating Temperature	32 to 104deg F (0 to 40deg C)
Storage temperature	-4 to 140deg F (-20 to 60deg C)
Operating and storage relative humidity	20 to 90% non-condensing RH
Regulatory Approvals	CE, FCC, RoHS
Cables	Interface cables between the video source/displays and the video wall controller are required for proper operation. Supports HDMI cables connected to the input up to 25 feet. Supports HDMI cables connected to the outputs up to 100 feet.
Power	Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (US AC adapter included). Output: 12 VDC, 2A

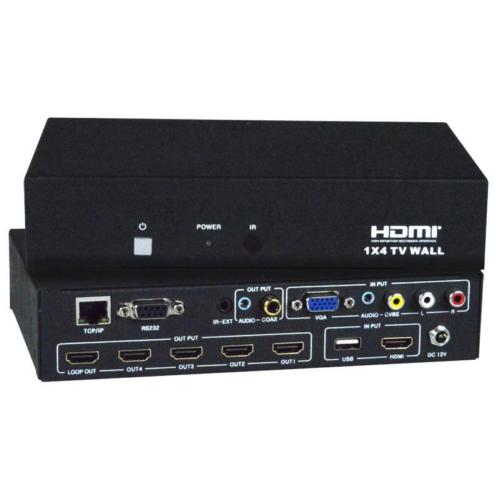

Audio/Video Input	One female HDMI connector. One female 15-pin HD connector. One RCA composite video jack. One 3.5 mm stereo audio jack. One set (RandL) RCA audio jacks. One female USB Type A connector.
Audio/Video Output	Four female HDMI connectors. One female HDMI Loop Out connector for cascading. Supported video output resolutions: 1024x768, 720p, 1360x768, 1080p Supports embedded digital audio through HDMI compatible TVs or audio receivers. One 3.5 mm stereo audio jack. One digital coaxial (RCA) audio jack..2

Dimensions	8.27 x 5.31 x 1.75 in
Operating Temperature	32 to 104deg F (0 to 40deg C)
Storage temperature	-4 to 140deg F (-20 to 60deg C)
Operating and storage relative humidity	20 to 90% non-condensing RH
Regulatory Approvals	CE, FCC, RoHS
Cables	Interface cables between the video source/displays and the video wall controller are required for proper operation. Supports HDMI cables connected to the input up to 25 feet. Supports HDMI cables connected to the outputs up to 100 feet.
Power	Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (US AC adapter included). Output: 12 VDC, 2A
Audio/Video Input	One female HDMI connector. One female 15-pin HD connector. One RCA composite video jack. One 3.5 mm stereo audio jack. One set (RandL) RCA audio jacks. One female USB Type A connector.
Audio/Video Output	Four female HDMI connectors. One female HDMI Loop Out connector for cascading. Supported video output resolutions: 1024x768, 720p, 1360x768, 1080p Supports embedded digital audio through HDMI compatible TVs or audio receivers. One 3.5 mm stereo audio jack. One digital coaxial (RCA) audio jack..2
